SYKM3012 / SYKM4215 high-speed ink printing slotting die-cutting machine (front feed)

Performance of major institutions

The whole machine in accordance with the requirements of high reliability and functional design and manufacture of the whole operation user-friendly design, can be performed in a short time to set, modify, execute, change, memory function, and accurate data.

All the rolls are made of high quality steel, hard chrome plating, surface grinding.

Transmission gears are made of high-quality alloy steel, heat treatment and grinding.

The main drive roller adopt keyless connect, decrease the connection gap, guarantee the printing overlay accuracy.

Oil automatic balance device to keep each unit oil balance.

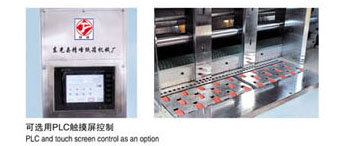

It adopts PLC control, with zero, memory and other functions. (Optional PLC combined with touch screen control)

The leading edge of formula feed mode

The mesh count of anilox roller or ceramic anilox roll can be made according to the requirements
